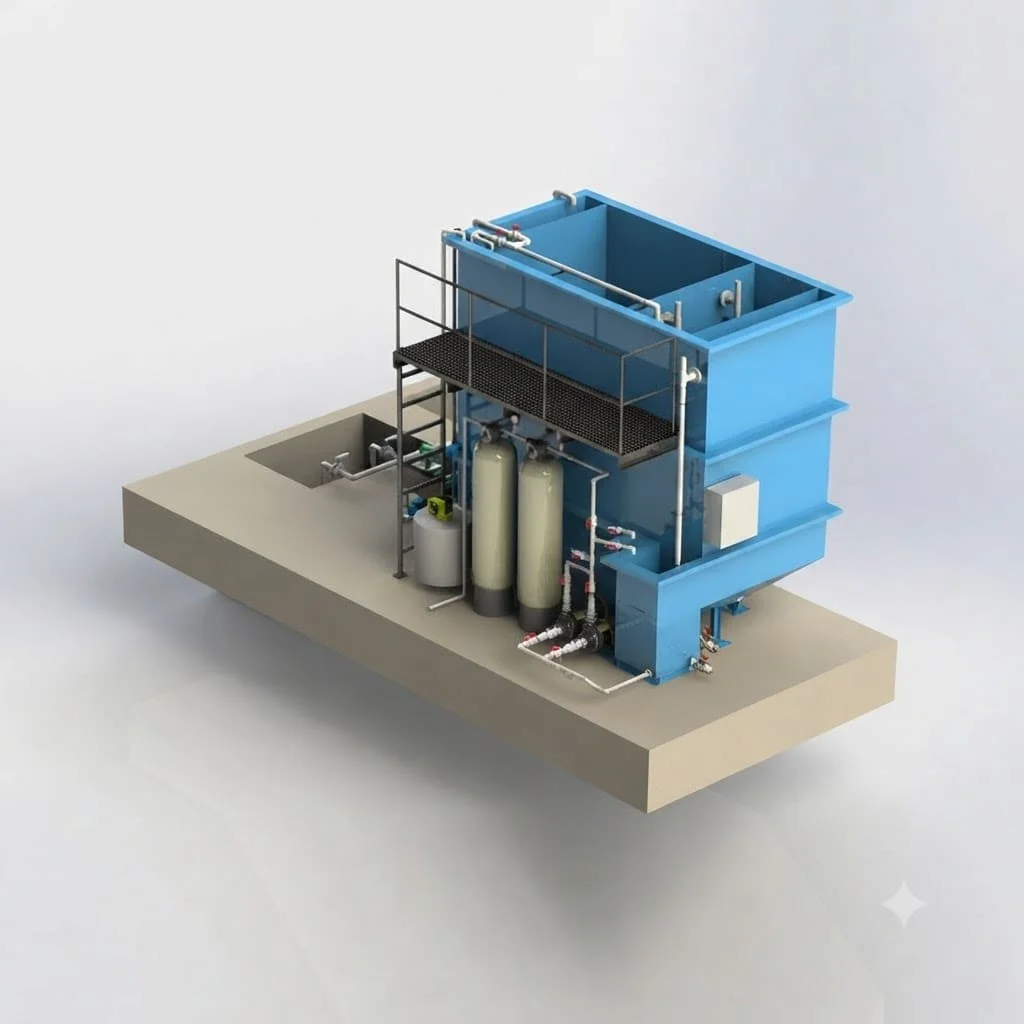

Top Prefab STP Manufacturers in Pune | Shree Water Tech
SHREE WATER TECH is leading Prefabricated Sewage Treatment Plant Manufacturers, Suppliers and Exporters in India. A Prefabricated Sewage Treatment Plant (STP) is a factory-built wastewater treatment system designed to treat domestic sewage in a compact and efficiently deployable configuration.
A conventional STPs that require extensive on-site civil construction, prefabricated systems are manufactured, assembled, and tested under controlled conditions before being transported to the project location.
These systems are suitable for residential buildings, apartments, housing societies, hotels, hospitals, schools, commercial buildings, IT parks, construction sites, and industrial developments. Depending on the project requirements, a Prefabricated STP Plant can be designed using MBBR, SBR, MBR, or other suitable biological treatment technologies.
What is a Prefabricated Sewage Treatment Plant?
A Prefabricated Sewage Treatment Plant is a pre-engineered wastewater treatment system manufactured in sections or modules at a factory and assembled at the installation site. Major treatment units, piping, pumps, aeration equipment, controls, and other components can be integrated before delivery.
The factory-built approach helps reduce on-site fabrication and can make installation more predictable. Prefabricated systems may be supplied as modular, skid-mounted, packaged, containerized, or compact STP plants, depending on the site and application.
A plug-and-play configuration can also be provided where process equipment and control systems are pre-integrated for simplified commissioning.
How Does a Prefabricated STP Work?
A prefabricated STP follows a systematic sequence to reduce pollutants from incoming sewage.
- 1. Preliminary Treatment: Incoming sewage passes through screening equipment that removes larger floating and suspended materials.
- 2. Equalization: An equalization stage can balance variations in wastewater flow and loading before biological treatment.
- 3. Biological Treatment: The wastewater enters a biological reactor where microorganisms break down biodegradable organic matter. Depending on the selected technology, this can be achieved through attached-growth media, suspended biomass, or membrane-based treatment.
- 4. Solid Separation: Biological solids are separated from the treated-water stream using a settling system or membrane filtration.
- 5. Tertiary Treatment: Additional filtration and disinfection may be included when higher-quality treated water is required for reuse or discharge.
- 6. Sludge Handling: Excess biological sludge is periodically removed and transferred for further processing, dewatering, disposal, or other approved management methods.
Types of Prefabricated STP
As we are leading Prefabricated STP Manufacturers in India, our Types are designed to meet different application requirements and industry standards, including the following types:
- Modular Sewage Treatment Plant: A Modular STP consists of independently engineered treatment sections that can be arranged according to available space and project requirements. Modular construction can also support future expansion.
- Packaged Sewage Treatment Plant: A Packaged STP combines multiple treatment functions into a pre-engineered system. It is suitable for projects requiring a compact and ready-to-install solution.
- Container STP Plant: A Container STP Plant houses treatment equipment within a suitable containerized structure. It is useful for remote, temporary, or space-constrained installations.
- Skid-Mounted STP Plant: A Skid-Mounted STP places major equipment on a structural skid, allowing easier transportation, positioning, and site installation.
- Compact Sewage Treatment Plant: A Compact STP Plant is designed to achieve the required treatment performance while minimizing the overall installation footprint.
- Plug-and-Play STP Plant: A plug-and-play sewage treatment system is supplied with major process equipment, controls, and connections pre-integrated to simplify installation and commissioning.
- Automatic STP Plant: An automatic STP incorporates control panels, sensors, automated valves, and PLC-based controls to reduce manual process intervention.
Technical Specifications of Different Types of Prefabricated STP
As a trusted Prefabricated STP Manufacturer, Supplier and Exporter in India, SHREE WATER TECH offers modular, packaged, containerized, skid-mounted, compact, plug-and-play, and automatic sewage treatment solutions. The following table provides indicative technical ranges for preliminary selection. Final specifications depend on sewage characteristics, treatment capacity, site conditions, and applicable discharge or reuse requirements.
| Technical Parameter | Modular STP | Packaged STP | Container STP Plant | Skid-Mounted STP | Compact STP | Plug-and-Play STP | Automatic STP |
|---|---|---|---|---|---|---|---|
| Treatment Capacity | 10–500 KLD or more | 5–250 KLD or more | 5–500 KLD, configuration dependent | 1–100 KLD or more | 1–100 KLD | 5–250 KLD | 5–500 KLD or more |
| Structural Configuration | Multiple interconnected modules | Integrated prefabricated package | Containerized enclosure | Structural steel skid | Space-efficient integrated unit | Factory-integrated process package | Integrated treatment and control system |
| Typical Length | 6–12 m per module, where applicable | 3–12 m, design dependent | 6–12.2 m per standard container | 2–8 m per skid | 2–8 m, design dependent | 3–12 m, design dependent | 3–12 m, design dependent |
| Typical Width | 2–4 m per module, design dependent | 2–4 m | Approximately 2.44 m per standard container | 1–2.5 m | 1.5–3 m | 2–4 m | 2–4 m |
| Overall Height | 2–4 m, design dependent | 2–3.5 m | 2.59–2.90 m external height for common standard containers | Equipment-layout dependent | 1.8–3 m | 2–3.5 m | 2–4 m, design dependent |
| Treatment Technology | MBBR / SBR / MBR / ASP | MBBR / SBR / MBR / FAB | MBBR / SBR / MBR / ASP | MBBR / MBR / SBR, where suitable | MBBR / SBR / MBR / FAB | MBBR / SBR / MBR | MBBR / SBR / MBR / ASP |
| Biological Treatment | Aerobic biological treatment | Integrated biological treatment | Containerized biological treatment | Compact biological process, as designed | Compact aerobic treatment | Pre-integrated biological treatment | Automated biological treatment |
| Biological HRT | Approximately 6–12 hours | Approximately 6–12 hours | Approximately 6–12 hours | Approximately 6–12 hours | Approximately 6–12 hours | Approximately 6–12 hours | Approximately 6–12 hours |
| Screening | Coarse / fine screening | Integrated or separate screening | Coarse / fine screening | Integrated or separate screening | Compact screening unit | Pre-integrated screening, where specified | Manual or mechanical screening |
| Aeration System | Blowers and diffusers | Integrated blower and diffuser assembly | Blowers and diffusers | Compact blower assembly, where required | Compact blower and diffuser system | Pre-integrated blower and diffuser system | Automatic blower control and aeration system |
| Sludge Management | Sludge collection and removal | Sludge holding and removal | Sludge holding and removal | Separate or integrated sludge handling | Compact sludge collection system | Integrated or separately connected sludge handling | Automated or scheduled sludge handling |
| Disinfection | UV / Chlorination | UV / Chlorination | UV / Chlorination | UV / Chlorination | UV / Chlorination | UV / Chlorination | UV / Chlorination with controlled dosing, as required |
| Typical Connected Load | 5–40 kW | 2–25 kW | 5–40 kW, configuration dependent | 1–15 kW | 1–15 kW | 2–25 kW | 5–40 kW, configuration dependent |
| Control System | PLC / HMI, sensors and alarms | Automatic controls; PLC/HMI optional | Local control panel / PLC | Manual / Automatic / PLC | Automatic or semi-automatic controls | Pre-integrated control panel | PLC / HMI / Sensors / Automated sequences |
| Installation | Prepared foundation and module connections | Prepared foundation and utility connections | Engineered base and service connections | Level foundation and lifting provisions | Compact foundation and utility connections | Prepared base with inlet, outlet and power connections | Prepared foundation and electrical connections |
| Expansion Capability | High; additional modules can be added | Depends on package design | Additional containers or treatment trains | Additional skids or equipment, where feasible | Limited to moderate, depending on layout | Depends on the integrated system design | Depends on hydraulic, process and control capacity |
| Typical Applications | Townships, campuses and industrial facilities | Apartments, hotels, offices and hospitals | Remote sites, infrastructure and space-constrained locations | Compact industrial and commercial installations | Small residential, commercial and institutional facilities | Projects requiring simplified installation and commissioning | Residential townships, commercial complexes and industrial facilities |
Features and Benefits of Prefabricated STP
As Prefabricated STP Exporters in India, our products provide several Features and Benefits including consistent quality, smooth finish, and long service life.
| Category | Feature | Benefit |
|---|---|---|
| Manufacturing | Factory-built construction | Consistent fabrication |
| Installation | Pre-engineered configuration | Faster site execution |
| Design | Modular structure | Flexible project planning |
| Footprint | Compact arrangement | Efficient use of available space |
| Deployment | Ready-to-install configuration | Simplifies installation |
| Mobility | Skid/container options | Easier transportation |
| Expansion | Modular architecture | Supports future upgrades |
| Automation | PLC-based controls | Simplifies operation |
| Maintenance | Accessible equipment layout | Easier servicing |
| Customization | Application-specific design | Suitable for varied sewage loads |
Major Components of a Prefabricated STP
Depending on the selected process, a prefabricated system may include:
- Inlet screening system
- Equalization tank
- Transfer pumps
- Biological treatment reactor
- MBBR media, where applicable
- Aeration blowers
- Fine-bubble diffusers
- Clarifier
- Sludge return arrangement
- Sludge handling system
- Pressure Sand Filter
- Activated Carbon Filter
- Disinfection system
- Treated-water tank
- Chemical dosing system, where required
- Flow meters
- Level sensors
- Pressure gauges
- Electrical control panel
- PLC automation system
- Interconnecting piping and valves
Applications of Prefabricated Sewage Treatment Plant
As Prefabricated Sewage Treatment Plant Manufacturers in India, our all types are used in various types of industrial sectors such as:
- Residential Applications: They are suitable for apartments, residential buildings, housing societies, gated communities, and large residential developments where decentralized sewage treatment is required.
- Hospitality: Hotels, resorts, and other hospitality facilities can use compact treatment systems to manage sewage generated from guest rooms, kitchens, sanitation facilities, and associated buildings.
- Healthcare: Hospitals and healthcare facilities can incorporate suitable STPs for domestic sewage treatment based on their wastewater characteristics and applicable discharge or reuse requirements.
- Education: Schools, colleges, universities, and residential campuses can use prefabricated systems where reliable wastewater treatment is required within limited site areas.
- Commercial and IT Facilities: Commercial buildings, office campuses, IT parks, and business developments can use modular systems to provide dedicated sewage treatment infrastructure.
- Construction Sites: Temporary accommodation, worker camps, construction projects, and infrastructure sites can benefit from compact and rapidly deployable treatment systems.
- Industrial Parks: Industrial parks and similar developments can use prefabricated STPs for domestic sewage generated by offices, employee facilities, accommodation areas, and common infrastructure. Process effluent may require a separate Effluent Treatment Plant (ETP).
Prefabricated STP Capacity
The required STP capacity is normally determined from the expected sewage generation rather than simply selecting a standard equipment size.
Key design inputs include:
- Number of users
- Daily water consumption
- Expected sewage generation
- Average flow
- Peak flow
- BOD and COD loading
- TSS concentration
- Operating schedule
- Future population growth
What is KLD and MLD?
KLD means Kilolitres per Day, while MLD means Million Litres per Day. 1 MLD = 1,000 KLD.
For example, an STP designed for 500 KLD has a nominal treatment capacity of approximately 500,000 litres per day, subject to the plant's actual operating conditions and design parameters.
SBR vs. MBBR: Which is better?
There is no universal answer because SBR and MBBR use different treatment approaches.
- SBR (Sequencing Batch Reactor): Performs treatment steps in a controlled cycle within a reactor, making it useful where batch operation and process flexibility are suitable.
- MBBR (Moving Bed Biofilm Reactor): Uses carrier media to provide a surface for microorganisms to grow. It can provide a compact biological-treatment configuration and is widely used for domestic sewage applications.
The better option depends on flow characteristics, available space, automation requirements, sludge management, treated-water objectives, and project-specific operating conditions.
Factors to Consider When Selecting a Prefabricated STP
Before selecting a system, evaluate:
- Sewage flow and peak loading
- Wastewater characteristics
- Required treated-water quality
- Available installation area
- Selected biological technology
- Automation level
- Power availability
- Sludge-management requirements
- Future expansion requirements
- Installation and transportation conditions
- Maintenance requirements
- Applicable environmental and discharge standards
A proper wastewater analysis and engineering assessment should be completed before final equipment selection.
Prefabricated STP Cost
The cost of a Prefabricated Sewage Treatment Plant depends on treatment capacity, technology, construction material, equipment configuration, automation, filtration, disinfection, transportation, installation, and commissioning requirements.
A compact MBBR-based system may have a different cost structure from an SBR or MBR configuration because the equipment and membrane requirements differ.
The project quotation may include:
- Treatment tanks
- Pumps
- Blowers
- Biological-treatment equipment
- Clarification or membrane systems
- Filters
- Disinfection equipment
- Electrical panel
- PLC automation
- Piping and valves
- Instrumentation
- Transportation
- Installation
- Commissioning
Operating costs should also be considered, including electricity, chemicals, routine maintenance, consumables, and sludge handling.
Installation & Maintenance
Prefabricated STPs are designed to minimize complex site fabrication. Installation generally involves preparing a suitable foundation, positioning the treatment modules, connecting inlet and outlet piping, establishing electrical connections, and completing process and control-system commissioning.
Routine maintenance should include:
- Cleaning inlet screens
- Inspecting pumps
- Checking blower operation
- Monitoring aeration
- Inspecting valves and piping
- Checking filters
- Monitoring treated-water quality
- Removing excess sludge
- Inspecting electrical panels
- Checking sensors and instruments
- Performing scheduled equipment servicing
Preventive maintenance helps maintain consistent treatment performance and reduces unexpected downtime.
Why Choose SHREE WATER TECH for Prefabricated STP?
- Experienced Water Treatment Specialists: Established in 2014, SHREE WATER TECH brings experience in water and wastewater treatment solutions, supported by 5,000+ completed projects, 9 export projects, ₹20 crore+ in orders executed, and 10 ongoing projects. Our experience helps us understand diverse project requirements and develop suitable prefabricated sewage treatment solutions.
- Customized Prefabricated STP Solutions: We design Prefabricated Sewage Treatment Plants according to wastewater characteristics, treatment capacity, site conditions, and project requirements. Our solutions can be configured for residential townships, commercial buildings, healthcare facilities, institutions, and industrial installations.
- Expertise in Advanced Treatment Technologies: Our water and wastewater treatment expertise includes MBBR, SBR, MBR, filtration, and disinfection technologies. We help select appropriate treatment configurations based on sewage flow, organic loading, available space, treated-water quality requirements, and intended reuse applications.
- Factory-Built Construction & Quality Control: Our prefabricated STP solutions are designed around factory-based fabrication and equipment integration. This approach supports dimensional accuracy, coordinated component assembly, and consistent construction quality while reducing the need for extensive on-site fabrication.
- End-to-End Project Execution: We support water and wastewater treatment projects through design, manufacturing, installation, and commissioning. Coordinating these stages helps streamline equipment integration, site preparation, utility connections, and operational handover.
- Space-Efficient & Flexible Designs: We offer prefabricated STP configurations in modular, packaged, containerized, skid-mounted, and compact arrangements. These options help address space limitations, transportation requirements, and installation constraints across different project sites.
- Scalable Treatment Capacity: Our modular engineering approach allows additional treatment modules or equipment to be considered when future capacity expansion is required. Expansion feasibility is evaluated according to hydraulic loading, process capacity, site availability, and existing equipment limitations.
- Application-Focused Technical Support: We consider influent quality, peak sewage flow, treatment objectives, maintenance access, and operating requirements when planning a prefabricated STP. This helps customers evaluate suitable system configurations for reliable operation and compliance with applicable discharge or treated-water reuse standards.
SHREE WATER TECH is leading Prefabricated Sewage Treatment Plant Manufacturers, Suppliers and Exporters in India. A Prefabricated Sewage Treatment Plant provides a practical approach to domestic wastewater treatment by combining factory-built construction with modular and application-specific engineering. Compared with conventional site-built systems, prefabricated STPs can reduce on-site fabrication and simplify installation. They can be supplied as modular, packaged, skid-mounted, compact, or containerized configurations depending on project requirements. Contact us today for a customized Prefabricated STP solution, technical consultation, project assessment, and quotation.
FAQ's
A modular STP is a sewage treatment plant designed using separate treatment modules that can be assembled according to project requirements. The configuration can provide flexibility for installation and potential future expansion.
KLD means Kilolitres per Day, while MLD means Million Litres per Day. One MLD is equal to 1,000 KLD.
Common STP technologies include MBBR, SBR, MBR, Activated Sludge Process (ASP), and other biological treatment configurations. The appropriate technology depends on sewage characteristics and treatment requirements.
Neither technology is universally better. SBR can be suitable for batch-cycle treatment, while MBBR provides attached-growth biological treatment using carrier media. Selection depends on site conditions, flow characteristics, space, automation, and treated-water requirements.
A prefabricated STP is a factory-built sewage treatment system manufactured and assembled before being transported to the installation site. It reduces the need for extensive on-site fabrication.
